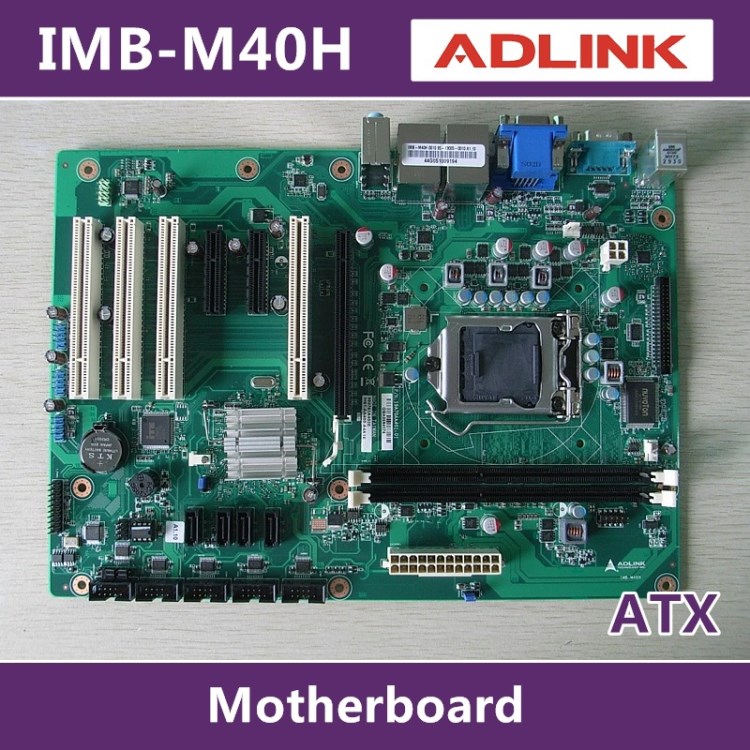

ADLINK凌華科技工業母板，IMB-M40H，H61芯片，ATX架構，4*PCI槽位擴展，多串口6*RS232（其中1*RS485可調），VGA+DVI-D雙顯示接口，雙千兆網絡控制器2*RTL8111E GbE LAN，32bit GPIO（16 in +16 out），10*USB接口

ATX Intel® Core? i7/i5/i3/Pentium/Celeron Industrial Motherboard

• 3rd Gen Intel® Core? processor family
• Intel® H61 Express Chipset supports
• 6x COM ports (including 1x RS-232/422/485)
• 1x PCIe x16, 2x PCIe x1 signal (PCIe x4 slot) and 4x PCI slots
• 16+16 DIO ports

The ADLINK IMB-M40H is an ATX industrial motherboard supporting the 3rd Generation Intel® Core? i7/i5/i3 and Pentium® processors in LGA1155 package to deliver a scalable high performance platform for a wide array of industrial applications. The IMB-M40H supports 32nm/22nm process CPUs at up to 3.4 GHz with integrated graphics and memory controllers, Direct Media Interface (DMI) and Flexible Display Interface (FDI) connectivity to the Intel® H61 Express Chipset. Dual-channel DDR3 1600 MHz memory is supported up to a maximum of 16 GB in two DIMM slots.
These advanced features, coupled with integrated graphics, one PCI Express x16 slot, two PCI Express x1 slots, four PCI slots, dual PCI Express-based Gigabit Ethernet, SATA 3 Gb/s and audio interfaces make the IMB-M40H ideal for automation control, medical, test & measurement, and telecom applications requiring a high-performance, easy-to-deploy and reliable main-board.
