金屬環墊適用于高溫高壓，有R，RX，BX 三種型號，其中R型號有橢圓和八角兩種截面，所有的金屬環墊用數控精加工，嚴格按照ASME B16.20 和API 6A 標準 。 主要用途：石油化工，煉油，火力發電，輕紡制藥，天然氣管道，閥門，RTJ法蘭，蒸汽和石油化工，油田等,我們可以提供30多種材料制作。

油井密封鋼圈，井口裝置密封圈，金屬環墊，密封件，八角墊，橢圓墊
主要應用于：石油機械設備，船舶設備，油井設備，管道閥門設備
主要材質：軟鐵，碳鋼，F5，304，316， INC825，INC625等多種材質
執行標準：國標，歐標，美標ASME B16.20， API 6A ， 非標
生產工序：
原材料--下料--鍛打--熱處理--半成品--半成品檢測--粗車--精車--成品檢測--包裝入庫

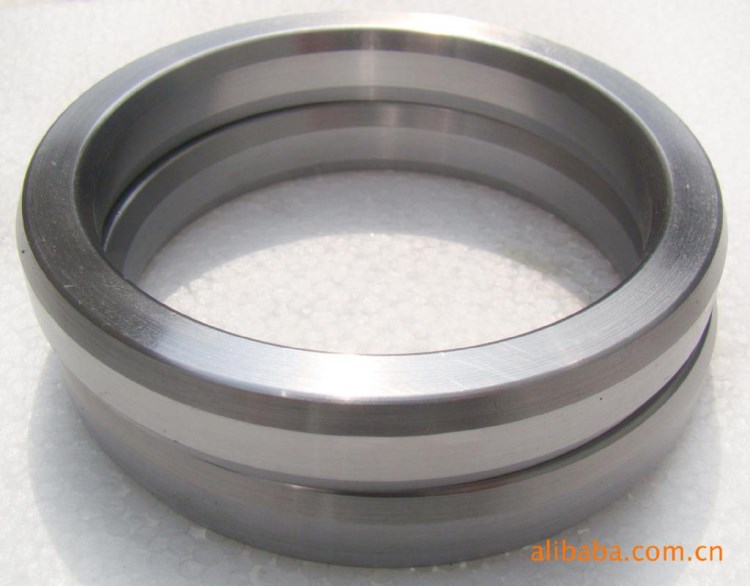

Ring Joint Gasket

Ring joint gasket can be used under the vacuum condition of 1000kgf/cm2 and more for high-pressure vessel, tower and vessel, valve bonnet, etc. including high-temperature and high-pressure steam, oil, gas, solvent, etc.

There are oval type and octagonal type as its representative shape, which can be generally used for pressure of max. 350kgf/cm2 and there is BX type for more pressure. As for oval type and octagonal type, oval type has bigger flange groove deformation.

It is because gasket itself is deformed while bolt is extended until arriving to constant pressure by increased flange connection pressure and line contact is moved to surface contact as well. Therefore, it has good initial sealing performance but gasket is largely deformed.

When Octagonal type is internally pressured, contact pressure with flange is increased, which is initially connected to surface contact. So it requests high connection pressure. But as for sealing characteristics, we can’t clearly say what type is better. Generally, octagonal type is widely used. RX type can be used for flange groove of ring joint gasket but BX type can be only used with API- STD-6BX flange.

-.

-. RING JOINT GASKET HARDNESS Production Standards

-. Identification mark according to ASME B16.20 standards

-. Shape according to the classification of Ring Joint Gasket
