生產黃銅帶
有大量庫存銅帶，質量，量大可提供送貨上門！
可分條、切割，零售。尺寸可根據客戶要求！
江蘇環勝銅業以“質量，客戶，信譽”的經營宗旨?xì)g迎各界人士來電、來函、來人洽
談給予合作機會。
聯系電話：0523-84622391/84622390
微信/手機：15651150630

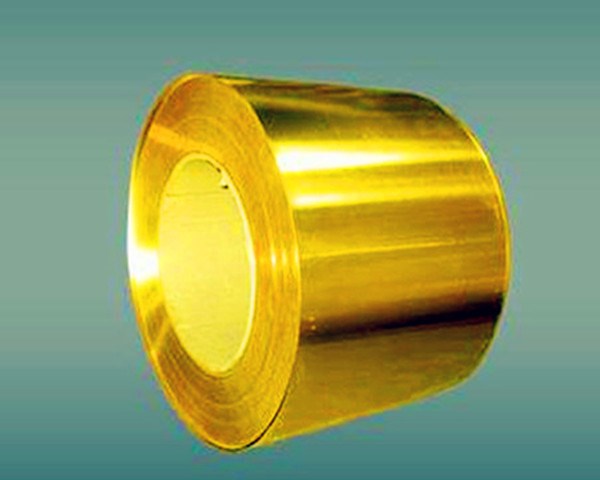

brass strip
| 1. | standard: |
| 1). | meet the technical conditions GB/T 2059-2008 and GB/T 17793-1999 standards. |
| 2). | Chemical ingredients meet the GB5232-2001 standard. |
| 3). | in accordance with ISO9001-2000 Quality system requirements |
| 4). | The special requirements will be satisfied when users have put forward. |
| 2. | Range of work: |
| 1). | thickness: 0.12--2mm |
| 2). | width: max 410mm |
| 3). | weight: about 100--350kg/roll |
| 3. | Range of usage: |
| 1). | radio frequency cable |
| 2). | transformer |
| 3). | lead frame |
| 4). | copper cladding aluminum |
| 5). | water heater exchanger |
| 6). | automotive manufacturers |
brass s
copper zinc alloy h62 C28000 CuZn38strip
Yellow Brass C2680 is a copper zinc alloy which is basically used for hot or cold formed products. Higher thermal conductivity of brass makes it ideal for heat exchangers. Altering the composition of the alloy allows brass to change into desired colors preferred by architects.
The following datasheet gives an overview of the chemical composition and properties of yellow brass UNS C28000.
Chemical Composition
The chemical composition of common brass UNS C28000 is detailed in the following table.
Element | Content(%) |
Iron, Fe | ≤ 0.050 |
Lead, Pb | ≤ 0.15 |
Zinc, Zn | 38 - 39 |
Copper, Cu | 62 |
Different countries’Standard comparison table of brass
GB | DIN |
| EN |
| ISO | UNS | JIS |
H96 | CuZn5 | 2.022 | CuZn5 | CW500L | CuZn5 | C21000 | C2100 |
H90 | CuZn10 | 2.023 | CuZn10 | CW501L | CuZn10 | C22000 | C2200 |
H85 | CuZn15 | 2.024 | CuZn15 | CW502L | CuZn15 | C23000 | C2300 |
H80 | CuZn20 | 2.025 | CuZn20 | CW503L | CuZn20 | C24000 | C2400 |
H70 | CuZn30 | 2.0265 | CuZn30 | CW505L | CuZn30 | C26000 | C2600 |
H68 | CuZn33 | 2.028 | CuZn33 | CW506L | CuZn35 | C26800 | C2680 |
H65 | CuZn36 | 2.0335 | CuZn36 | CW507L | CuZn35 | C27000 | C2700 |
H63 | CuZn37 | 2.0321 | CuZn37 | CW508L | CuZn37 | C27200 | C2720 |
H62 | CuZn40 | 2.036 | CuZn40 | CW509N | CuZn40 | C28000 | C3712 |
H60 | CuZn38Pb1.5 | 2.0371 | CuZn38Pb2 | CW608N | CuZn37Pb2 | C35000 | - |
HPb59-1 | CuZn39Pb2 | 2.038 | CuZn39Pb2 | CW612N | CuZn38Pb2 | C37700 | C3771 |
Specification
All dimensions are according to customers requirements.
trip/ brass strip/ brass strip/ brass strip/ brass strip/ brass strip
Characteristics and Applications
Brass Alloy name | Copper (%) | Zinc (%) | Other |
Abyssinian gold | 90 | 10 |
|
Admiralty brass | 69 | 30 | 1% tin |
Aich
|
