MB CAN FILTER
This Yanhua MB CAN Filter 18 in 1 Benz/BMW Universal filter should be added to car after odometer adjustment for most chasis model, EXCEPT for W222/W205/W447,
those 3 chasis models should add canfilter before odometer adjustment.
those 3 chasis models should add canfilter before odometer adjustment.

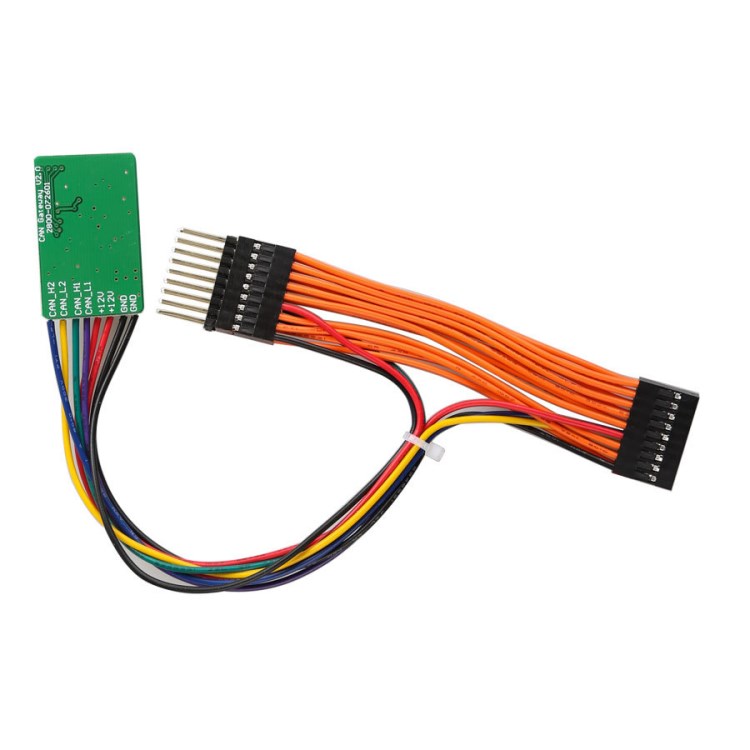

Yanhua MB CAN Filter 18 in 1 Benz/BMW Universal filter
1.CAN Filter 18 in 1Support Model:
S (W222)C (W205)V (W447)S (W221)C (W204)E (W212)
E (W207)A (W176)G (W46)3
ML (W166)SL (R231)GL (X166)
B (W246)CLS (W218)SLK (R172)
SLS (W197)CLA (W117)GLK (X204)
BMW：CAS4/FEM Fxx
Black --------- GND Red --------- +12V White --------- +5V
Package including:
BMW：CAS4/FEM Fxx
2.BMW Support Model:
BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect dirrectly to instrument panel);
BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect dirrectly to instrument panel);
BMW 5 series F10，7 series F01/02 etc., CAS4 Fxx chasis.( F01,F02,F07,F18,F10,F20,F25,X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
This filer is universal for multiple car models, small and convenient, easy operated, which with stable performance and reliability.
NOTICE!!
New style:222/205/217
Old style:166/212/463
CHECK the car modele correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1
YH Benz/BMW Universal filter --- Diagram for BMW
Below is illustration for wiring:
NOTICE!!
New style:222/205/217
Old style:166/212/463
CHECK the car modele correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1
YH Benz/BMW Universal filter --- Diagram for BMW
Below is illustration for wiring:
Black --------- GND Red --------- +12V White --------- +5V
Purple -------- L1（CAN_L1） Green --------- H1（CAN_H1）
Yellow --------- L2（CAN_L2） Blue --------- H2（CAN_H1）
NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!
Below is the diagram for BMW 1 series F20 instrument:
Below is the diagram for BMW 1 series F20 instrument:
Below is the BMW 3 series F30 instrument:
Below is the diagram for BMW X5 F15 instrument:
Below is the diagram for BMW FEM:
Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)
Package including:
1pc x Yanhua MB CAN Filter 18 in 1 Benz/BMW Universal filter
